20-series Dual-Auger Grain Carts

Your time is money, which is why we’ve designed the Unverferth high-capacity, dual-auger grain carts to be some of the largest, fastest, and most efficient on the market.  This grain cart series features a pivoting vertical auger for unloading flexibility and a rubber-cushioned tongue suspension for a smoother ride.  Get exceptional unloading speed and a lower profile design from a combination of horizontal and vertical augers, plus a variety of innovative features that simplify your hands-on tasks to let you focus on the bigger picture.  Capacities range from 2500 to 1100 bushels and undercarriage options include 50" wide Equalizer tracks, 42" wide Equalizer tracks, 36" wide tracks, walking tandem duals, and high-flotation single wheels and tires depending on the model.  Keep your harvest moving smoothly and take fewer trips to the truck with the Unverferth lineup of dual auger grain carts.

Jump To

Auger

20-Series Grain Cart

Dual-Auger Harvesting Power

A dual-auger grain cart provides faster unloading speeds and a lower profile hopper, allowing more room for the combine auger in uneven terrain.

The 20” horizontal floor auger feeds the 22” (24” on model 2520 and 2020) vertical unloading auger for unloading speeds up to 1,000 bushels per minute!

Convenient Unloading

The 20" diameter horizontal floor auger feeds the 24" vertical auger on models 2520 and 2020 for unloading speeds up to 1,000 bushels per minute or the 22" vertical auger on models 1620, 1320 and 1120 for unloading speeds up to 850 bushels per minute.

The pivoting vertical unloading auger features adjustable height which allows the operator to lower the auger to the truck when unloading and raise the auger when pulling away.

The operator can adjust the auger reach up to 9' 1", depending on model, away from the cart for precise grain placement without repositioning the grain cart.

Auger Flighting with AR400 Strips

Auger Flighting

The exclusively designed 3/8" thick max-edge auger flighting features an additional 1/4" thick Abrasion Resistant (AR400) strips (the strip is in addition to the 3/8, giving a total thickness of 5/8”) that are welded in high volume areas to increase durability and extend the flighting life.

The patented rubber cushioned auger connection protects the upper and lower vertical augers from harsh tractor PTO engagements.  Reducing stress helps extend the life of the driveline.  Electronic balancing of the upper and lower augers eliminates vibration, providing a smooth unload.

Two-point auger engagement between the upper and lower vertical auger sections ensures a smooth transition of grain through the connection area.

Unloading Control

The standard bi-directional downspout allows you to easily move the downspout in and out for precise grain placement. The pivoting vertical auger can be raised when pulling up to the truck and lowered when ready to unload.

For 4-way downspout control, an optional pistol-grip joystick adds the ability to move the downspout left-to-right in addition to in-and-out.

Dual-Auger LED Spotlights

Operator Convenience

Three high-output LED spotlights located on the unloading auger downspout feature a compact design and durable construction for a convenient day and nighttime operation.

The easy-to-operate auger field rest stand provides quicker fold times for in-field operations.

When folded all the way down, the unloading auger fits completely within the cart's hopper width for ease of transport and storage.

The vertical unloading auger features a hinged cleanout door at the bottom for tool-free cleanout.

Tank

Tank Design

Models 2520, 2020, 1620, 1320 and 1120 feature tank capacities of 2,500, 2,000, 1,600, 1,300 and 1,100 bushels to meet the largest operation’s demands.

The 20-Series double auger grain cart design allows the tank to have a lower profile and low center of gravity for in-field stability and easy combine unloading.

The steep floor slopes, graphite-coated interior and recessed floor auger intake provide quick and clean unloading, even in high-moisture grain.

Rear access door on all models for easily entering tank for cleanout and inspection.

Dual Auger Grain Cart Horizontal Auger Cleanout Doors

Cleanout

The rear, single-point opening for the horizontal floor auger panels permits easy clean out between crops.

Unverferth 20 Series Flow Gate Indicator

Hydraulic Flow Gate

The tank features standard 16" hydraulic flow-control gates over the horizontal floor auger which allows the operator to meter the flow of grain.  An easy-to-see indicator on the front of the auger displays how far the flow gates are open.

Unverferth 2020 Weatherguard Roll Tarp

Weatherguard Tarp

A standard weatherguard rollover tarp protects the tank’s contents and features low-profile tarp bows that are reinforced to eliminate sagging.

The heavy-duty, 18 oz. black canvas can withstand harsh weather conditions while the semi-trailer locking design provides optimum protection from high winds and moisture.

UM Model 2020 Side Ladder

Tank Standard Features

The ergonomic side-mounted ladder extends away from the grain cart for easy access to the top of the tank.

Three front and one rear shatterproof window make for convenient load checking and the interior tank-mounted LED spotlight allows the operator to easily check the tank’s contents at night.

Flashing L.E.D. amber and red taillights with SMV sign and transport chains for safe road transport.

Exposed seams are silicone sealed for corrosion resistance and the durable top coat of high-grade enamel paint is baked on in tractor red or green for a smooth, automotive-like finish.

Undercarriage

Heavy-Duty Construction

The Unverferth 20-Series dual auger grain cart lineup features industry-leading undercarriage options so you can choose the right undercarriage to meet your operation’s needs.  Choose from high-flotation single wheels and tires, walking tandem duals, 50" or 42” wide Equalizer® track systems or a 36” wide traditional track system.

Rubber-cushioned tongue suspension provides a smoother ride over the roughest terrain and a tubular steel mainframe with 12-gauge steel shell for enhanced longevity.

A heavy-duty 12,000 lb. drop-leg jack ensures safer storage and the standard transport chains provide added safety when traveling on the road.

Dual Auger Belt Driveline

Driveline

The exclusive driveline design on Unverferth dual auger grain carts combines a belt drive for the 20" horizontal auger and a heavy-duty direct-drive 90-degree gearbox for the vertical unloading auger.

The proven and reliable belt-drive system features dual four-strand belts and dual spring-loaded tensioners for long life and easy maintenance and the floor auger can be manually disengaged if needed to run the unloading auger by itself.

The exclusively designed heavy-duty 90° gearbox powers the vertical unloading auger and features a 1 ¾” output shaft for long-term, trouble-free operation.

The quick-couple 1,000 RPM P.T.O. shaft features an overrunning front end for smooth spin down and a cut-out clutch for driveline protection.

Model 1320 Dual Auger Grain Cart Single Wheel & Tire

High-Flotation Single Wheels & Tires

Models 1320 and 1120 are available with high-flotation single wheels and tires with a variety of tire sizes available depending on the model.  Model 1320 with single wheels and tires features 12-bolt hubs and model 1120 utilizes 10-bolt hubs.  Each hub is manufactured from special alloy, high-strength steel with gusseted reinforcements for trouble-free operation.

Grain Cart Walking Tandem Wheels

Walking Tandem Dual Wheels & Tires

Available on models 1320 and 1120, the innovative walking tandem design allows the cart to trail easily through the field and features independent operation from front to rear, allowing the cart to "walk" over obstacles.  The tires can be adjusted for 30" or 36" row spacings and the entire wheel assembly swings out for easier tire/wheel maintenance.

Model 1620 Fixed Tandem Undercarriage

In-Line Fixed Tandem Wheels & Tires

Models 2020 and 1620 can be equipped with an oscillating in-line tandem undercarriage for an economical design that provides high-flotation for reduced compaction.  All fixed in-line tandem undercarriages utilize 12-bolt hubs while the 2020 model features 1050/50x32 tires and model 1620 features 900/60x32 tires.

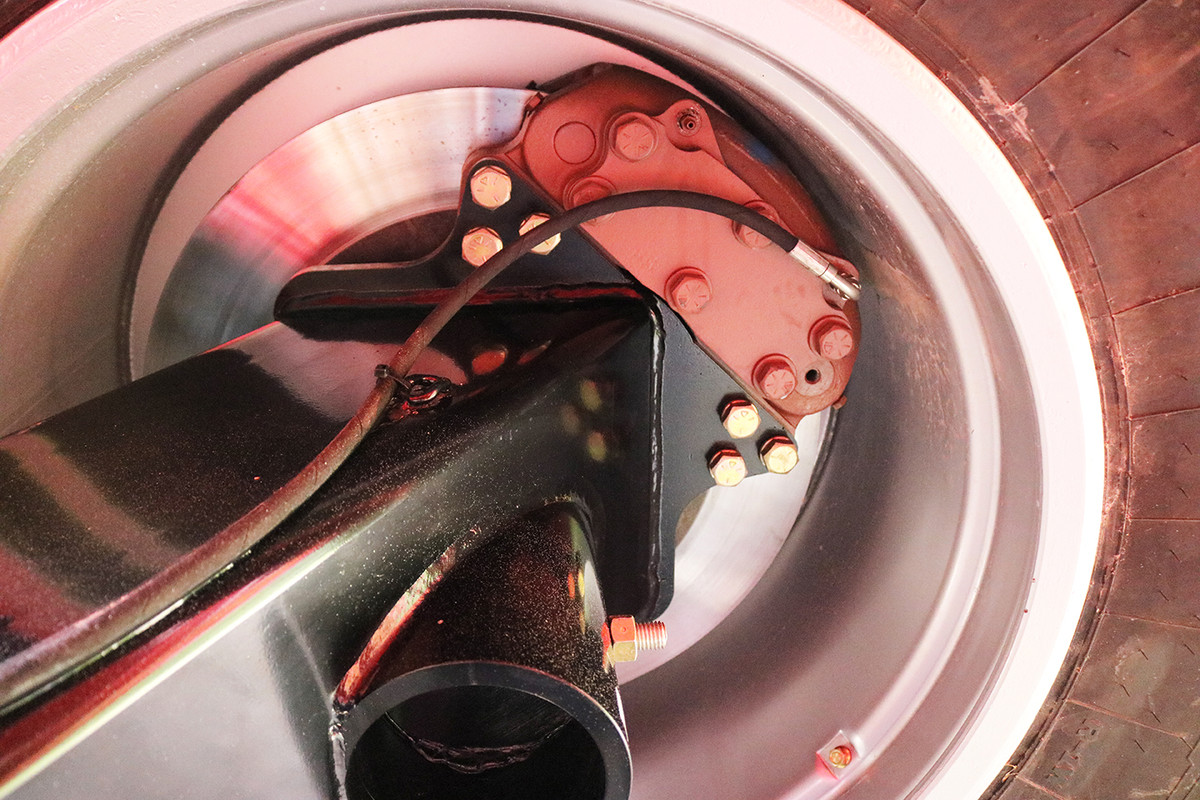

Optional 4-wheel hydraulic disc brakes for model 2020 fixed in-line tandem undercarriage are available for enhanced towing safety.

1120 Dual Auger Overall

36” Wide Traditional Track

The 36" wide track belt with 105” of ground contact length features a 4-bogie design and is available on all models. Model 1120 model can be equipped with a 2-bogie track with 87” of ground contact length.

40" end-wheels feature 10-bolt hubs that are greaseable with triple-lip seals and a steel guard for optimum lubrication.  Purgeable grease hubs ensure the operator can “purge or push” out any dirt and debris from the hub, increasing the life and eliminating down time.

For a more economical design, model 1120 can be equipped with a 36" wide track belt with 75” of ground contact length and 2-bogie wheels.

32" main end-wheels feature 8-bolt hubs that are greaseable with triple-lip seals and a steel guard for optimum lubrication.

All 36” tracks utilize hydraulic belt tensioning adjustment for easier track alignment, optimum ground contact and even weight distribution.  The conveniently located PSI gauge allows the operator to easily check the pressure, ensuring the proper tension is being applied to the belt.

The cast iron pivoting mid-rollers are on the same plane as the main end-wheels for optimum flotation and reduced stress on the belt.

The exclusive rubber belt construction molds the tread, guide lugs and belt together as one piece, increasing durability and eliminating the need for glued components.

grain cart track, grain cart tracks, largest grain cart, grain cart with tracks, grain carts, grain buggies, grain buggy, auger buggies, auger buggy, auger cart, auger carts, auger wagon, auger wagons, chaser bin, hopper wagon

50" and 42" Wide Tracks

The 50" wide Equalizer® track features 105" of ground contact length with a 4-bogie design and is standard on model 2520 and offered as an option on model 2020.  The 42" wide track belt with 105” of ground contact length and a 4-bogie design is available on models 2020, 1620 and 1320.  Models 1320 and 1120 can be equipped with a 2-bogie Equalizer track with 87” of ground contact length.

The Equalizer track system has a patented design that features 8° of side-to-side camber and 20° of front-to-back pivot with independent movement of each track to provide uniform ground contact on uneven terrain. The standard auto-greaser system provides automatic application of grease at more frequent intervals for consistent lubrication.

40" main end-wheels feature 10-bolt hubs that are greaseable with triple-lip seals and a steel guard for optimum lubrication. Greaseable hubs ensure the operator can push out any dirt and debris from the hub, increasing the life and eliminating down time. The cast iron pivoting mid-rollers are on the same plane as the main end-wheels for optimum flotation and reduced stress on the belt.

Standard hydraulic belt tensioning adjustment permits easier track alignment, optimum ground contact and even weight distribution. The conveniently located PSI gauge allows the operator to easily check the pressure, ensuring the proper tension is being applied to the belt. The exclusive rubber belt construction molds the tread and guides lugs and belts together as one piece. This increases the durability and eliminates the need for glued components.

Accessories

Industry-Leading Accessories

Customize your Unverferth double auger grain cart to fit your operation’s needs.  Choose a UHarvest Pro Data Management system, conventional scale package, joystick remote, color camera and much more!

UHarvest Pro In Cab File Manager

UHarvest Pro Grain Cart Scale

Your complete ISOBUS grain cart scale and harvest data solution!  By utilizing ISOBUS technology, the user can operate the UHarvest® Pro grain cart scale and data management system on the virtual terminal display in the tractor, eliminating the need for batteries and extra monitors in the cab.  Simply plug into the ISOBUS port and you’re ready to go!  With a free subscription to Slingshot® reporting, you have a complete data management solution that seamlessly integrates with most crop insurance requirements.  Need to send your data to the cloud?  Simply connect your mobile device with cellular data to the Bluetooth signal and open the free UHarvest Pro app to make it happen!

Visit uharvest.net for complete information pertaining to the UHarvest Pro grain cart scale and data management system.

UHarvest Pro 4240 Combine Verify

UHarvest Pro Features

The hitch weight management feature allows the operator to maintain optimum tractor and cart control by evenly distributing the grain load. This feature monitors grain and total cart weight and shows real-time hitch weight and a color gauge to avoid overloading the hitch during loading. Use the Combine Verify screen to easily calibrate the combine yield monitor with one touch. This calibration event is saved in the UHarvest Pro system once the verification process is completed.

Slingshot cloud reporting is included with every purchase of the UHarvest Pro grain cart scale system. Slingshot is a secure, first-of-its-kind, web-based system that lets you send, store and share your harvest data. Using the free UHarvest Pro mobile app, you can easily send files from the field on a mobile device with cellular connection to your Slingshot account. Once you have connected your mobile device to the Bluetooth connection provided by the GCM, launch the app and you're ready to go. Upload once a day or once a season. It's easy to use and completely up to you! (available on IOS and Android devices).

Want to easily send a report to your crop insurance agent that includes the actual dry bushel count? Consider it done with the optional Moisture Sense system. It measures grain moisture as it leaves the cart and averages the content of each load, then converts all grain unloaded to standard dry bushels for the ultimate harvest record keeping. The optional Accu-Load technology provides quick and easy loading of trucks by closing the grain cart’s flow gate when the desired weight is unloaded. After you’ve installed the HCV (hydraulic control valve) on the cart, simply push the “Auto” button for precise weight unloading. Each truck weight is matched to the truck name for easier operation. The operator can then focus on topping off each truck and proper grain placement.

Remote Grain Cart Scale Display

Additional Scale Packages

All scale packages, including the UHarvest Pro, can be equipped with an optional remote scale display with a 4" x 18" LED screen mounted to the side of the grain cart for easy viewing of the loaded weight.

The model 520 Scale Package features auto-log and the patent-pending start/stop button for ease of use. The large, multi-line display features an alpha-numeric keyboard for easily editing or changing fields. The combine check button can help calibrate the combine's yield monitor, accumulate weights per field entry and has the ability to store 1 years’ worth of harvest data in the monitor's memory. The 520 comes with PC software and a 1GB USB flash drive to easily download your harvest information to your computer in Excel or PDF format.

The model 410 Scale Package was specifically designed for ease of use with the patent-pending start/stop button. You can assign, view and change six-character field information and accumulate weights within a field. An optional printer is required for record keeping.
5-Function Joystick Remote for Grain Carts

Pistol-Grip Remote Joystick Remote

The 5-function pistol grip joystick remote option adds 4-way downspout control and can be placed anywhere in the tractor cab for ease of use when unloading into a trailer.  The remote controls the auger fold/unfold, auger pivot up/down, flow gate open/close, downspout left/right and downspout in/out and double-tap operation allows the operator to fold and unfold the auger without holding the remote.  A convenient backlit display permits easy viewing in darker environments.

grain cart, grain carts, grain buggies, grain buggy, auger buggies, auger buggy, auger cart, auger carts, auger wagon, auger wagons, chaser bin, hopper wagon

Color Camera

The Color Camera option features a 7" 12V monitor which mounts in the tractor cab.  The sideboard-mounted, weather-proof camera to monitor the inside of the tank during loading.  An optional second color camera can be added which views rear traffic during transport.

Grain Cart Hydraulic Jack

Other Accessories

An optional hydraulic jack permits quick and easy hookup to the tractor on all models.  Requires one additional SCV hydraulic remote on the tractor for operation.

An Auto-Greaser for the 36” wide track undercarriage reduces your daily maintenance by automatically delivering small amounts of grease to each pivoting joint at more frequent intervals. This is powered by an electric grease pump with a 2-liter grease reservoir and programmable grease intervals.

Electric operation of the weatherguard roll tarp provides in-cab operational convenience.

A custom-molded tank with a 275-gallon capacity and a low-profile design fits tightly to the grain cart hopper for increased protection and a sleek appearance.  The system is powered by an Ace 204 hydraulic pump that provides 40 gallons per minute of output at 100 PSI and has a clean out valve incorporated into the plumbing for easily draining the tank.  The hose reel features 100’ of hose and a firehose-style nozzle with adjustable patterns.  This water delivery system requires one additional SCV connection on the tractor and 4 gallons per minute of hydraulic flow.

Specifications

Specification Model 2520 Model 2020 Model 1620 Model 1320 Model 1120
Loaded Tire Ground Pressure - P.S.I. calculated at the 3" penetration level. For use as a comparative guide in choosing between various tire options.
Capacity (bushels) 2500 2000 1600 1300 1,100
Engine H.P. 500 400 300 250+ 225+
Loaded Tongue Weight (lbs) 6700 6000 5500 5400 5200
Empty Tongue Weight (lbs) 4800 4000 4000 3550 3400
Auger Diameters (vertical/horizontal) 24" / 20" 24" / 20" 22" / 20" 22" / 20" 22" / 20"
Unload Speed (bu./minute). 1000 1000 850 850 850
Flighting Thickness 7/16" 7/16" 7/16" 7/16" 7/16"
Hub Size / Spindle Diameter - - - 12-bolt / 6" 10-bolt / 4 1/2"
Hydraulic Remotes Required 4 4 4 4 4
Hopper Length 30' 29' 25' 4" 22' 22'
Hopper Width 13' 10" 13' 10" 11' 10" 11' 10" 11' 10"
Auger Side Reach Max - measured to inside edge of spout 8' 5" 8' 2" 8' 5" 9' 1" 9' 1"
Auger Side Reach Min - measured to inside edge of spout 4' 1" 4' 5' 1" 3' 4" 3' 4"
Overall Transport Length 42' 6" 37' 10" 34' 2" 30' 10" 30' 10"
Hitch to Center of Axle

25' 7" Track

-

23' 3" Track

19' 6" Front Tandem

21' 10" Track

18' Front Tandem

20' 4" Single

19' 3" Front Tandem

20' 4" Single

19' 3" Front Tandem

Single Wheels and Tires
Measured Undercarriage - - - 1250/50x32 Tire 1050/50x32 Tire
Empty Weight (lbs) - - - 20860 18960
Hitch Height - - - 2' 1' 8"
Hopper Height Low Side - - - 11' 11" 10' 9"
Hopper Height High Side - - - 12' 11" 11' 9"
Auger Height with Spout Straight Down - - - Adj. 15' 3" - 10' 3" Adj. 15' 3" - 10' 3"
Height to Top of Auger in Unload Position - - - Adj. 20' 6" - 15' 6" Adj. 20' 6" - 15' 6"
Width Outside of Tires - - - 14' 1" 13' 3"
Center of Tire to Center of Tire - - - 9' 10" 10'
Under Frame Clearance - - - 1' 7" 1' 4"
Walking Tandem Dual Wheels and Tires
Measured Undercarriage - - - 650/65x42 Tires 520/85x38 Tires
Empty Weight (lbs) - - - 23000 22780
Hitch Height - - - 1' 8" 1' 8"
Hopper Height Low Side - - - 11' 7" 10' 7"
Hopper Height High Side - - - 12' 6" 11' 6"
Auger Height with Spout Straight Down - - - Adj. 15' 3" - 10' 3" Adj. 15' 3" - 10' 3"
Height to Top of Auger in Unload Position - - - Adj. 20' 6" - 15' 6" Adj. 20' 6" - 15' 6"
Width Outside of Tires - - - 14' 8" 13' 10"
Center of Tire to Center of Tire Inner Dual       5' 9" 6' 2"
Under Frame Clearance - - - 1' 7" 1' 7"
Center of Tire to Center of Tire Outer Dual - - - 12' 7" 12' 7"
Hitch to Center of Tire Rear Dual - - - 21' 4" 21' 4"
In-Line Fixed Tandem Dual Wheels and Tires
Measured Undercarriage - 1050/50x32 Tires 900/60x32 Tires - -
Empty Weight (lbs) - 32200 27340 - -
Hitch Height - Adj. 1' 6" - 1' 9" 1' 5" - -
Hopper Height Low Side - 11' 11' 1" - -
Hopper Height High Side - 12' 12' 1" - -
Auger Height with Spout Straight Down - Adj. 16' 6" - 10' 11" Adj. 15' 3" - 10' 3" - -
Height to Top of Auger in Unload Position - Adj. 20' 1" - 14' 11" Adj. 20' 9" - 15' 8" - -
Width Outside of Tires - 14' 10" 13' 7" - -
Center of Tire to Center of Tire - 11' 4" 11'
Under Frame Clearance - 1' 4" 1' 3" - -
Hitch to Center of Tire Rear Dual - 26' 10" 25' 2 1/2" - -
Tracks
Measured Undercarriage 50"x148" Equalizer 42"x148" Equalizer 36"x148" Tracks 36"x148" Tracks 36"x131" Tracks
Empty Weight (lbs) 37680 36640 28560 28240 25520
Hitch Height 1' 9" Adj. 1' 6" - 1' 9" 1' 5" 1' 4" 1' 4"
Hopper Height Low Side 11' 5" 11' 11' 11' 2" 10' 4"
Hopper Height High Side 12' 5" 12' 12' 12' 2" 11' 4"
Auger Height with Spout Straight Down Adj. 14' 8" - 10' 7" Adj. 16' 10" - 10' 11" Adj. 15' - 10' Adj. 15' - 10' Adj. 15' - 10'
Height to Top of Auger in Unload Position Adj. 19' 6" - 16' Adj. 20' 1" - 14' 11" Adj. 20' 10" - 16' 1" Adj. 20' 10" - 16' 1" Adj. 20' 10" - 16' 1"
Width Outside of Tracks 13' 11" 13' 11" 11' 10" 12' 3" 12' 1"
Center of Track to Center of Track 9' 9" 10' 5" 8' 5" 9' 4" 9' 1"
Under Frame Clearance 1' 9" 1' 9" 1' 2" 11" 11"
Bushel capacities were measured with #2 corn at 15% moisture (56 lb test weight)
Due to continuing improvements in the design and manufacture of Unverferth products, all specifications contained herein are subject to change without notice.
Loaded Tire Ground PSI Chart
Undercarriage
50"x172" Equalizer Tracks 13.58 11.68
50"x148" Equalizer Tracks 16.36 13.75
42"x148" Equalizer Tracks   16.25 13.08 11.07
42"x131" Equalizer Tracks       13.06 11.47
36"x148" Traditional Tracks   18.66 14.97 12.63 11.09
36"x131" Traditional Tracks         13.11
36"x112" Economical Tracks         14.66
1050/50x32 In-Line Fixed Tandems (185A8 LI)   22.22
900/60x32 In-Line Fixed Tandems (185A8 LI)     18.17
520/85x38 Walking Tandem Duals (155A8 LI)         20.92
520/85x38 Walking Tandem Duals (173A8 LI)         25.56
520/85x42 Walking Tandem Duals (165A8 LI)       21.13 18.68
650/65x42 Walking Tandem Duals (168A8 LI)       21.08 18.64

IF 1250/50x32 (201A8 LI)

IF 1250/50x32 (188A8 LI)

      16.77 14.60
1250/50x32 Singles (188A8 LI)         16.96
1050/50x32 Singles (178A8 LI)         21.25
35.5x32 Singles (193A8 LI)         26.41
