Raptor Strip Tillage Tool

With less surface soil disturbance, strip tillage will retain organic material, reduce erosion and conserve fuel by only tilling the strip that is planted into.  The Unverferth Raptor strip tillage tool was built for professional growers looking to take advantage of the benefits that strip tillage can provide.  Pull-type models feature a front-folding toolbar and vertical-folding row units for narrow transport and compact storage.  When applying fertilizer, the optional dry or liquid fertilizer systems are integrated into the rear of the machine for the best row unit visibility and easy filling.  The ground-breaking TerrainPro2 row unit allows each row to travel up and down independently for the most consistent row-to-row tillage depth and fertilizer placement.  The Raptor tool is the first all-in-one solution for strip-tillage and banding fertilizer and features greater operator visibility, easy filling when equipped with fertilizer and a row unit with unmatched performance.

Jump To

Toolbar

All-In-One Solution

The pull-type Unverferth Raptor strip tillage tool can be ordered with an integrated dry or liquid fertilizer system for banding fertilizer directly in the row during the strip tillage pass.  Pull-type toolbars can also be ordered to just perform a strip-tillage pass along with 3-point mounted toolbars.

Raptor strip tillage tool, TerrainPro strip till row unit, strip tillage equipment, strip till equipment, striptill, striptillage, tillage, strip till bar, strip till row unit, strip till farming

Models

The Unverferth Raptor strip tillage tool can be ordered as a pull-type or 3-point mounted toolbar.  ST models feature a pull-type designed toolbar without a fertilizer application system while MT models feature a 3-point mounted toolbar.

Pull-Type

Pull-type models are available as a 12-row or 16-row machine with 30” row spacing. The heavy-duty 7” x 7” toolbar provides reliable operation and features 15° of above and 5° of below horizontal flex to follow uneven terrain.

The standard front-folding toolbar design and vertical folding row units provide a narrow transport width of 13’ 6” and compact storage.  A hydraulic jack, CAT 4 bull-pull hitch, safety chain and transport lighting contribute to easier storage and safer road travel.

Wing gauge wheels with 9.5L-15 stubble guard tires on the toolbar provide added stability through the field.

Pull-type ST models without a fertilizer system feature 380/90x46 single wheels and tires on the undercarriage for greater flotation and added stability.

Raptor strip tillage tool, TerrainPro strip till row unit, strip tillage equipment, strip till equipment, striptill, striptillage, tillage, strip till bar, strip till row unit, strip till farming

3-Point

3-point models are available as a 6-, 8- or 12-row machine with 30”, 36” or 38” row spacing and heavy-duty, double wall frame with a 6” x 6” rear mounting bar for maximum durability.

The 3-point hitch connection provides a compact design for greater maneuverability and toolbar stabilizer wheels provide added stability and tool-free adjustment for quick and convenient depth control.

3-point models can be equipped with an optional flex frame kit for 12-row 36” and 38” folding models which allow the wings to float 15° above and 5° below horizontally to follow uneven terrain.

Additional options for 3-point mounted toolbars include a rear hitch that can tow up to 14,000 lbs. gross vehicle weight with 1,000 lbs. of tongue weight and optional liquid or dry fertilizer shank attachments.

Row Unit

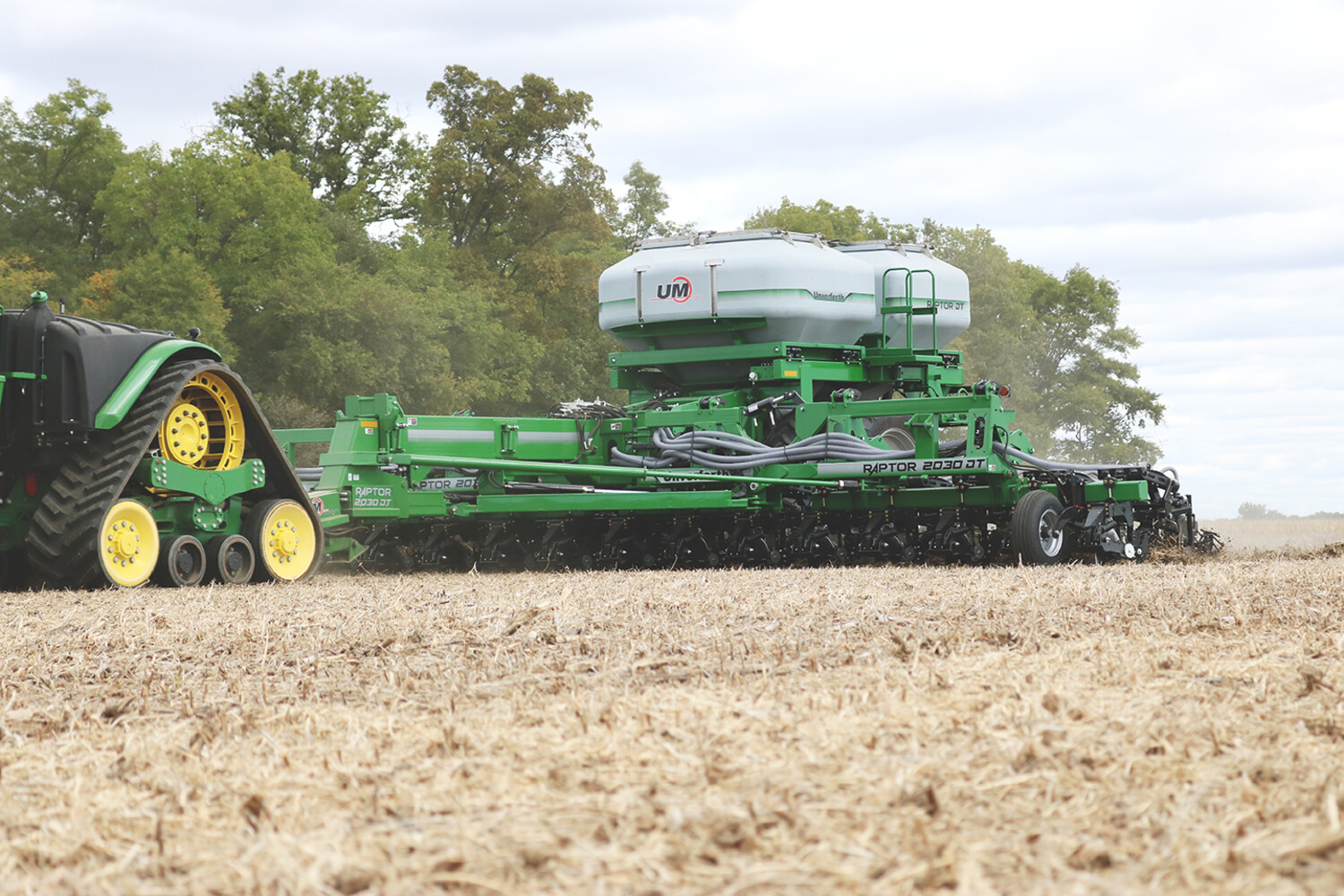

Unverferth 2030DT Raptor Strip-Till Machine

TerrainPro2

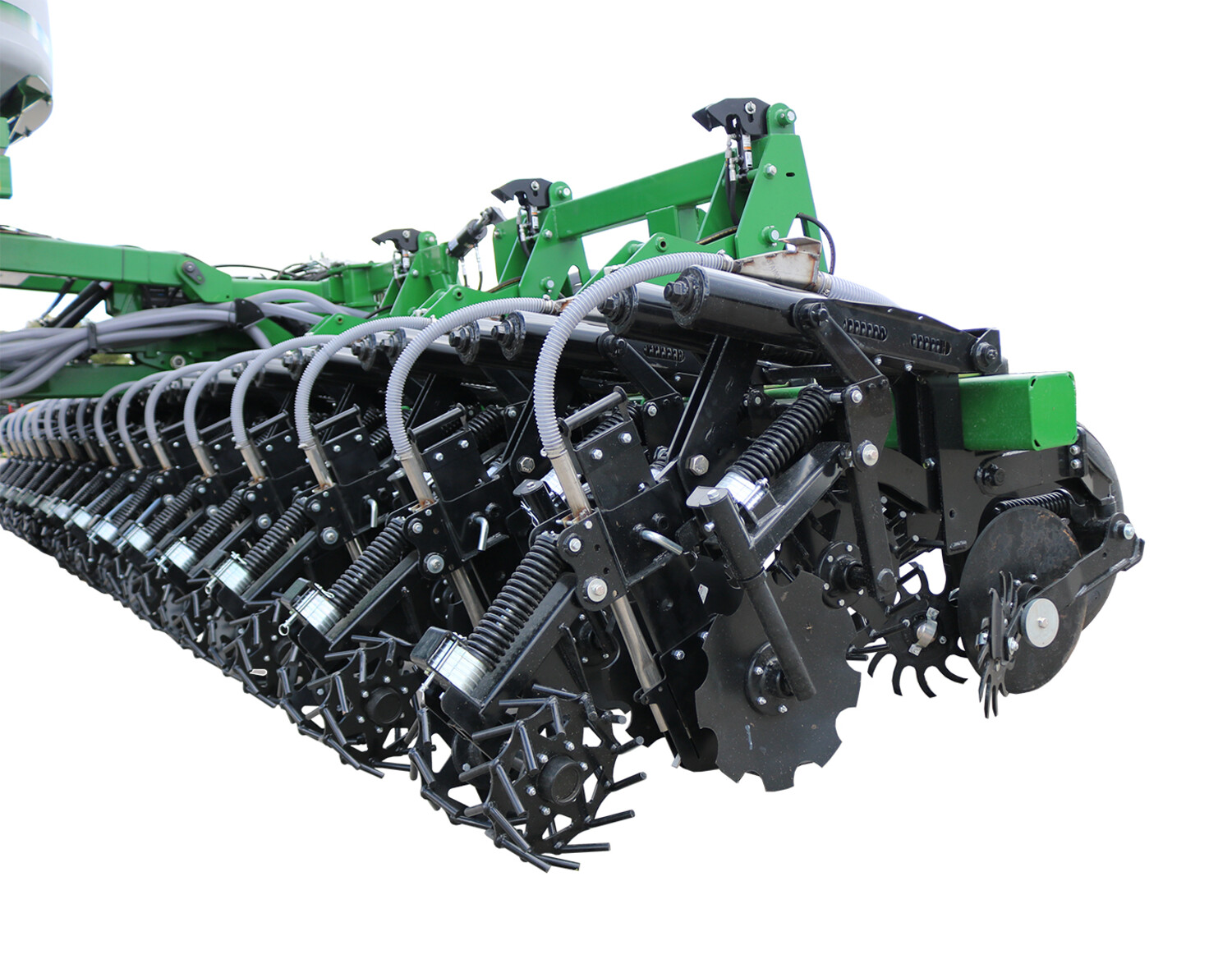

The Raptor strip tillage tool features the innovative TerrainPro2 row unit that has been developed and tested in a wide range of soil types for consistent tillage depth and accurate fertilizer placement, when equipped.

Free-Floating Design

Each row unit features independent parallel linkage, which allows it to free-float 7” upward and 4” downward to ensure that each shank runs at the same depth for consistent tillage and fertilizer placement.

Lead Coulter

The 20” diameter lead coulter features 1,500 lbs. of down pressure to slice through the toughest soils and 6-bolt greaseable hubs with 5 layers of seal protection for long-term, trouble-free use.

Free-floating 16.5” shark tooth row cleaners with 6-bolt hubs follow ground contours independently from the lead coulter and clear residue from the strip.

Depth Control Wheel

Independent row unit depth is maintained by the 12.75" depth control wheel that runs between the row cleaners and the shank for consistent shank depth from row to row.

The 12.75” diameter solid steel depth band wheel features a standard scraper to prevent mud, rocks and other debris from building up, allowing the operator to run in varying conditions.

Strip Till Shank

The shank features tool-free depth adjustment from 4” to 10” deep and a convenient depth gauge which allows the operator to quickly and easily adjust each shank.

The Raptor strip till tool is available with spring-cushioned auto-reset trip mechanism (Model 2130) with 2,000 lbs. of point load pressure or shear-bolt protected shank (Model 2115) with 5,000 lbs. of shear pressure.  The Model 2130 is ideal for soil conditions with rocks while the 2115 model is ideal for use in rock-free soils.

The replaceable 2 ¼” cast point and 1 ½” wide integrated wear bar provides long-term, trouble-free use.  Replaceable shank wear plates are standard to protect the shank from abrasive soil.

Closing Coulters

The 17” wavy blade closing coulters on each side of the shank keeps the soil in the path of the trailing basket. Each coulter floats independently from the other to keep constant ground contact through uneven terrain and utilize 6-bolt hubs with triple-lip seals for long-term, trouble-free use.

Tool-free width and angle adjustment with automatic locking positions allow the operator to easily change the width of the strip and height of the berm.  Spring down pressure and angle adjustment of the closing coulters provide quick and easy on the go strip-till enhancements.

Conditioning Basket

The trailing 11” diameter crowfoot conditioning baskets break up clods, condition the berm and feature a unique design to prevent plugging with mud, rocks or other debris.

Each crowfoot conditioning basket rolls independently from the other and features tool-free adjustable down pressure.

Raptor strip tillage tool, TerrainPro strip till row unit, strip tillage equipment, strip till equipment, striptill, striptillage, tillage, strip till bar, strip till row unit, strip till farming

Ideal Planting Strips

The TerrainPro2 row unit leaves a perfectly conditioned strip that warms quickly in the spring, reduces soil compaction and improves overall soil health.

Fertilizer

Banding for Greater Yield

DT models feature a dry fertilizer system, and LT models feature a liquid fertilizer system for pull-type Raptor models.  6- and 8-row 3-point models can be ordered with a pull-type dry fertilizer cart with a 4-ton tank.  Unverferth offers an all-in-one solution from one manufacturer so you can quickly and accurately band your fertilizer in the row during the strip tillage pass.

Fertilizer Carts

The fertilizer tank and undercarriage on pull-type models are located behind the toolbar for better row unit visibility from the tractor cab and easier filling from behind the machine.

Both fertilizer systems feature a standard Raven RCM ISOBUS controller which allows the operator to control the rate from the tractor's virtual terminal screen.  This system integrates with section control and pre-loaded field prescriptions.

The undercarriage on both fertilizer systems features 380/90 x 46 dual wheels and tires maximize flotation and provide a stable ride during road transport.

Unverferth Raptor Strip-Till Tool DT Model Rear View

Dry Fertilizer

The DT models feature a dry fertilizer system for pull-type Raptors and feature dual tanks for applying 1 or 2 products with a variable rate.  The dual 6-ton custom-molded poly tanks provide a total capacity of 12 tons of dry product and 2.5” plumbing ensures high-rate capabilities.

DT Models

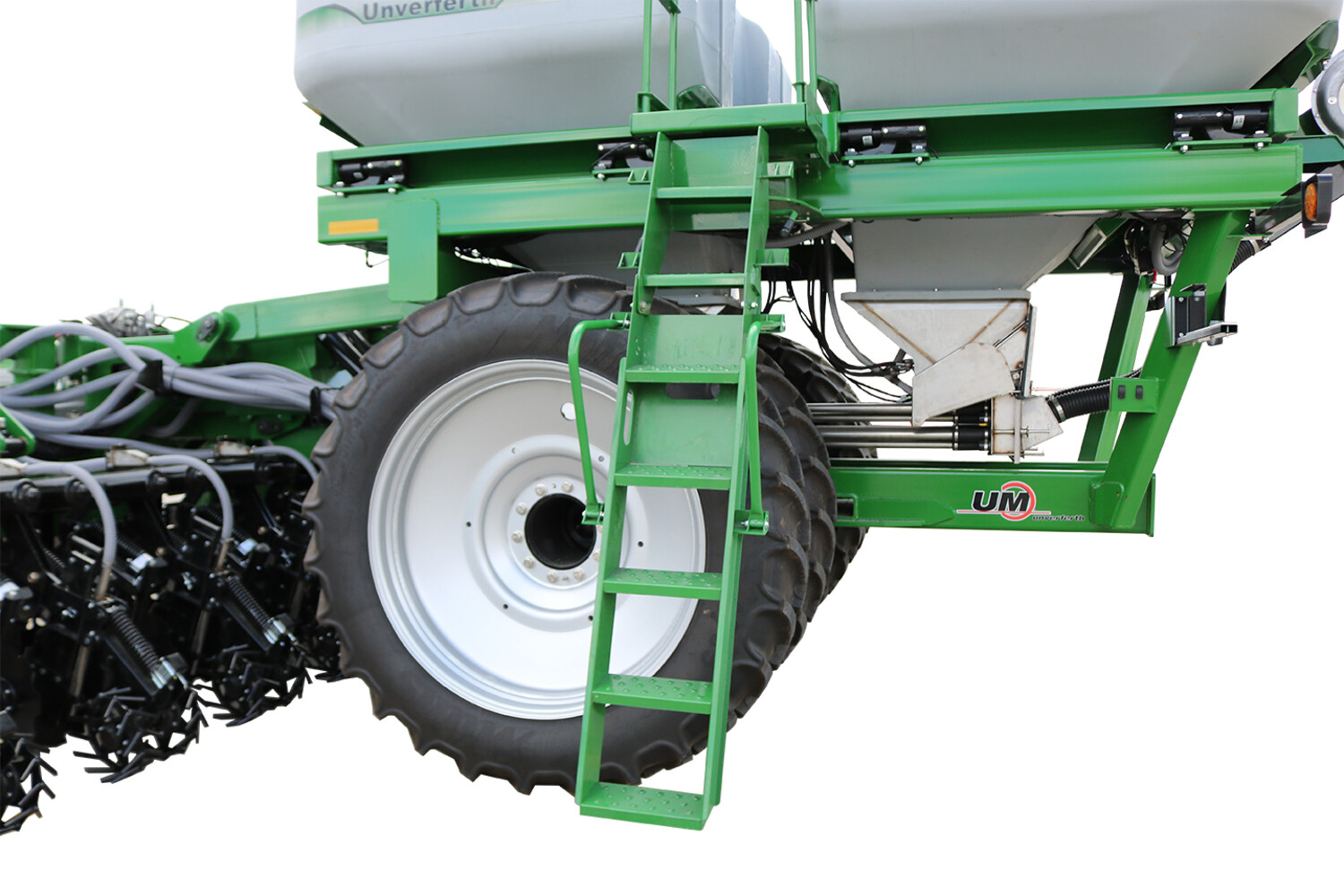

The tanks feature weather-tight lids that protect the fertilizer and an ergonomic ladder and viewing platform provide convenient access to the top of the tanks.

2-section control for each product and standard blockage monitors alert the operator on the ISOBUS screen when a row unit is blocked.  The application system is powered by a hydraulically operated blower fan that feeds the 2.5” dry fertilizer plumbing.

Each 6-ton tank is standard with a 4-point load cell scale system that integrates with the ISOBUS controller for accurately tracking dry fertilizer applied and provides convenient rate calibration.

6- and 8-row 3-point Raptor models can be ordered with a 4-ton dry fertilizer cart that features a pull-type hitch, ladder and tank access platform, 295/75x22.5 dual tires, hydraulic blower fan, 2” plumbing, 2-section control and Raven RCM ISOBUS controller.

Raptor strip tillage tool, TerrainPro strip till row unit, strip tillage equipment, strip till equipment, striptill, striptillage, tillage, strip till bar, strip till row unit, strip till farming

Liquid Fertilizer

The LT models feature a liquid fertilizer system for pull-type Raptors and feature a custom-molded 1200-gallon T-shaped tank that holds the last 50 gallons of liquid in the sump to always maintain a primed pump, even on side hills.

UM Raptor LT Hydraulic Pump

LT Models

An Ace 750 PWM hydraulic pump is standard with 4-section control that is integrated into the ISOBUS rate controller to view and control the rate and integrates with section control and pre-loaded field prescriptions.

Standard flow ball monitors allow the operator to easily monitor the flow to each row.  For quick and easy filling, a standard 3” quick fill is located at the rear of the tank with a tank volume indicator.

Specifications

Pull-Type Raptor Specifications
Model 2130DT 2115DT 2130LT 2115LT 2130ST 2115ST

Due to continuing improvements in the design and manufacture of Unverferth products, all specifications contained herein are subject to change without notice.

Fertilizer Attachment Dry Fertilizer System Liquid Fertilizer System No Fertilizer
Trip Mechanism Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt
Hitch CAT 4 Pull-Type
Size 16-Row / 12-Row
Row Spacing 30"
Wing Flex Up 15°
Wing Flex Down
Transport Width 13' 6"
Transport Height 11' 10" 10' 4" 10' 4"
Transport Length 44' 10" 44' 4" 38' 4"
Hitch to Center of Axle 35' 2"
Approx. Empty Weight (lbs.) 16-Row 43,565 33,200 33,680 31,375 28,660 26,355
12-Row 38,730 30,040 30,005 28,215 24,985 23,195

Approx. Empty Tongue Weight (lbs.)

(In Transport)

16-Row 16,915 12,410 13,745 12,590 14,245 13,095
12-Row 13,515 10,830 11,520 11,010 12,410 11,515

Approx. Loaded Tongue Weight (lbs.)

(In Field)

16-Row 11,160 10,010 12,470 11,320 -
12-Row 10,280 9,385 10,440 9,925 -

Minimum

H. P.

Requirement

480* / 360*
*30 - 35 HP Per Shank Running at the Minimum Working Depth
3-Point Raptor Specifications
Model 2030MT 2015MT 2030MT 2015MT 2030MT 2015MT

Due to continuing improvements in the design and manufacture of Unverferth products, all specifications contained herein are subject to change without notice.

Size 12-Row 8-Row 6-Row
Trip Mechanism Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt Auto-Reset Shear-Bolt
3-Point Hitch CAT 3 & CAT 4 Narrow
Row Spacing 30"/36"/38"
Frame Folding Folding Rigid
Transport Width 14' 7" 14' 7" 17' 1"
Approx. Empty Weight (lbs.) 14,305 12,575 10,125 8,975 6,870 6,005

Minimum

H. P.

Requirements

360 240 180
